In refrigeration and air conditioning systems, efficiency, cleanliness, and protection are key to long-term performance. One essential component that ensures these qualities is the filter drier cylinder. Designed to remove moisture and contaminants from both the liquid and suction lines, this product plays a vital role in maintaining the integrity of refrigeration systems.

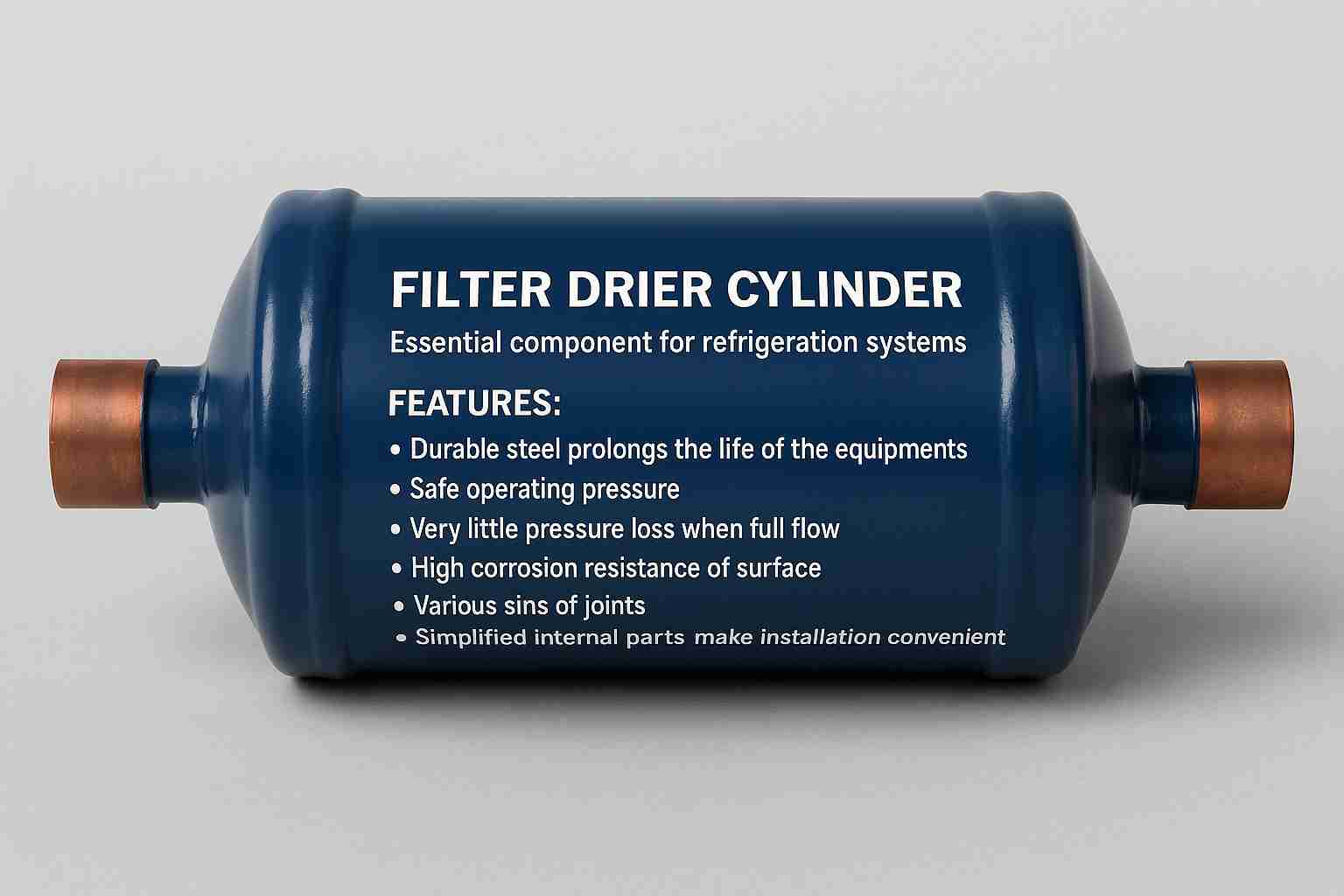

What Is a Filter Drier Cylinder?
A filter drier cylinder is a critical device installed in refrigeration systems to eliminate moisture, acid, and debris. It helps protect sensitive components like the compressor, ensuring smooth operation and preventing potential damage due to system contamination.
How It Works
The filter drier cylinder operates on the adsorption principle, where a desiccant material captures and retains moisture and impurities. After installation, the system is protected through a molded filter dry fragment, allowing the filter to clean high-capacity suction lines. If a compressor burns out, the filter drier helps clean and restore the line, preventing further damage.
Key Features
The filter drier cylinder stands out due to its durable design and advanced performance.
- High Durability: Constructed with tough steel that extends the service life of refrigeration equipment.
- Safe Operating Pressure: For pipet use: 3.5 to 4 Pa/500 and For SV aspirating tubes: 3.1 MPa/450 psig
- Low Pressure Loss: Designed for full-flow systems with minimal pressure drop.
- Corrosion Resistance: Surface treatment enhances resistance to rust and wear.
- Multiple Joint Sizes: Available in various joint sizes to suit different system configurations.
- Simplified Installation: Internal components are designed for quick and convenient setup.
Model and Connection Specifications
| Model | Connection Size |
|---|---|
| SPL-485 | 5/8 inch |
| SPL-487 | 7/8 inch |
| SPL-4811 | 1-3/8 inch |
| SPL-4813 | 1-5/8 inch |
Models are available in a range of sizes to match different refrigeration systems.
Applications
Filter drier cylinders are versatile and used across several types of systems:
- Refrigeration and air conditioning systems
- Liquid and suction line filtration
- Low-temperature refrigeration
- Systems requiring high-capacity moisture and acid removal
These cylinders efficiently clean and filter systems, helping to extend the lifespan of crucial components and reduce maintenance costs.
Why It’s Essential
Moisture and debris can cause major issues in refrigeration systems—leading to corrosion, freezing, or acid formation. A filter drier cylinder acts as a safeguard against these risks, making it an essential component for refrigeration system efficiency and reliability.
Conclusion
The filter drier cylinder is more than just a component—it’s a crucial protector of your entire refrigeration system. With its advanced filtration, durable build, and easy installation, it’s a must-have for maintaining optimal performance in both commercial and residential HVAC and refrigeration applications.
