Troubleshooting Condenser Cooling Failures During Freeze-Drying Operation, Failure Message Context: This failure message appears when the condenser fails to reach the required minimum temperature within a specified time after the freeze-drying program has been activated. This delay or failure to achieve the necessary temperature can disrupt the freeze-drying process and affect the quality of the product.
What is condenser?

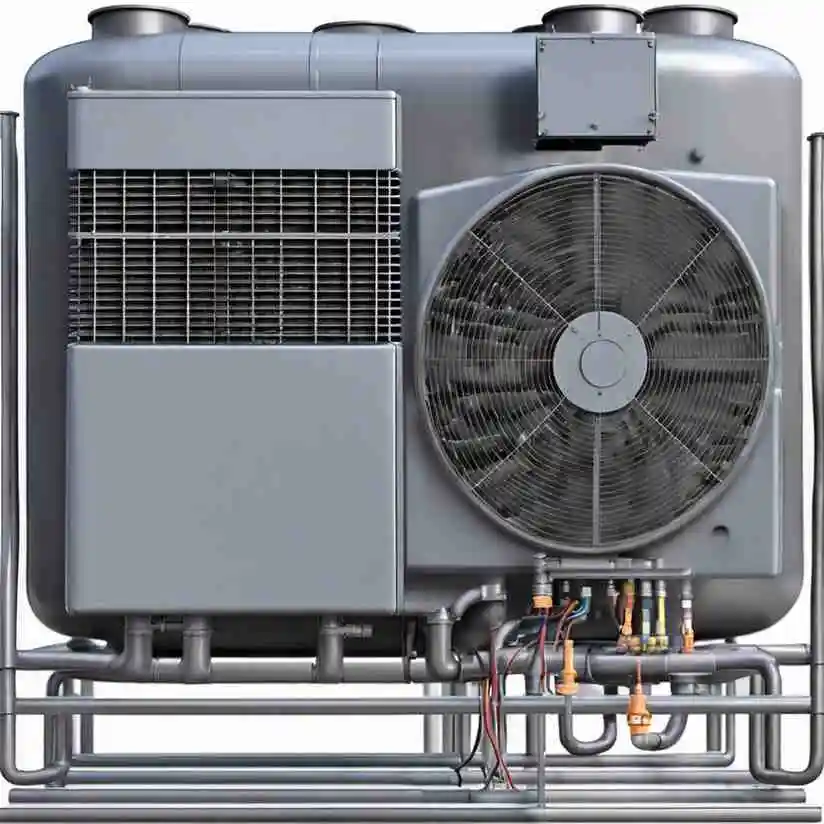

A condenser is a component used in cooling systems, such as refrigerators, air conditioners, and freeze-dryers, to remove heat from a gas or vapor, turning it into a liquid. In refrigeration, for example, the condenser cools down the refrigerant gas by transferring heat to the surrounding air, allowing the gas to condense into a liquid form. This process is essential for maintaining proper cooling and temperature regulation in various systems
Condenser Cooling Issues
Condenser Cooling Issues refer to problems that occur when the condenser in a system, such as a freeze-dryer or air conditioning unit, is unable to cool properly. These issues can prevent the condenser from reaching the necessary low temperatures required for efficient operation. Common causes include airflow blockages, dirty coils, fan malfunctions, refrigerant leaks, low refrigerant levels, electrical issues, or improper temperature settings. When condenser cooling fails, it can impact the overall performance of the system and affect product quality in processes like freezing and drying.
Potential Causes and Solutions
Failures in the Condenser Cooling System:
- Airflow Blockages: Ensure that the condenser is free from any obstructions. Dust, debris, or objects blocking airflow can significantly impact cooling efficiency. Regularly clean and inspect the area around the condenser to maintain proper ventilation.
- Dirty Condenser Coils: Over time, condenser coils can accumulate dirt and grime, which reduces their ability to transfer heat effectively. Periodically clean the coils using a brush or vacuum to remove any buildup that could impair cooling performance.
- Malfunctioning Condenser Fan: The fan plays a crucial role in dissipating heat from the condenser coils. Check if the fan is operating correctly and quietly. If it’s not functioning properly, it may need repair or replacement.
- Low refrigerant levels: Inadequate refrigerant can cause insufficient cooling. A professional technician should check the refrigerant levels and top them up if necessary. Leaks in the refrigerator lines should also be addressed promptly.
- Refrigerant Leaks: Inspect the condenser and associated lines for any signs of refrigerant leaks. Leaks not only reduce cooling efficiency but can also cause damage to other system components. Repairs should be conducted by a qualified technician.
- Electrical Connection Issues: Faulty or loose electrical connections can affect the operation of the condenser and its cooling capabilities. Verify that all electrical connections are secure and functioning properly. Repair or replace any damaged wiring or components.
- Incorrect Temperature Settings: Ensure that the temperature settings on the freeze-dryer are correctly configured. The settings should align with the manufacturer’s recommendations to ensure proper condenser operation.
- System Calibration Problems: Sometimes, the system’s calibration may be off, leading to inaccurate temperature readings. Check if the system calibration is correct and adjust if necessary according to the manufacturer’s guidelines.
This failure message is given in the following case:
The required minimum temperature in the condenser has not been reached within a certain pre-set time after the above-mentioned programs have been switched on. The cause of this failure could be: Failures in the condenser cooling system
Conclusion:
To address condenser cooling failures, it is essential to systematically evaluate each potential cause. Regular maintenance and inspections can help prevent these issues and ensure that the condenser operates efficiently. If the problem persists after performing these checks, consult a professional for a comprehensive diagnosis and repair.
FAQs: Condenser Cooling Failures During Freeze-Drying
1. What does the failure message about condenser cooling mean?
The failure message indicates that the condenser has not reached the required minimum temperature within the preset time after the freeze-drying program has started. This can affect the freeze-drying process and the quality of the product.
2. What are common causes of condenser cooling failures?
Common causes include airflow blockages, dirty condenser coils, malfunctioning condenser fans, low refrigerant levels, refrigerant leaks, electrical connection issues, incorrect temperature settings, and system calibration problems.
3. How can I check for airflow blockages?
Inspect the area around the condenser for any obstructions like dust or debris. Ensure there is adequate space for airflow and clean the surrounding area regularly.
4. How do I clean the condenser coils?
Turn off the power to the freezer, then use a brush or vacuum to gently remove dirt and grime from the coils. Avoid using harsh chemicals that could damage the coils.
5. What should I do if the condenser fan is not working?
Check if the fan is running smoothly and quietly. If the fan is not operating or is making unusual noises, it may need repair or replacement. Consult the manufacturer’s guidelines or a professional technician.
7. What are signs of refrigerant leaks?
Signs of refrigerant leaks include hissing noises, ice formation on the condenser, and a drop in cooling performance. If you suspect a leak, have it inspected and repaired by a qualified technician.
8. How do I verify electrical connections?
Ensure all electrical connections to the condenser are secure and properly connected. Look for any signs of damage or loose wires and repair or replace them as needed.
9. How can I ensure the temperature settings are correct?
Check the temperature settings on your freeze dryer and compare them with the manufacturer’s recommendations. Adjust the settings if necessary to align with the recommended values.
10. What should I do if calibration problems persist?
If you suspect calibration issues, consult the manufacturer’s guidelines for calibration procedures. If the problem continues, seek assistance from a professional technician.
