Understanding Freeze Drying Process Parameters: Ensuring Optimal Cycle Control
In pharmaceutical manufacturing, the freeze-drying process, also known as lyophilization, requires precise control of key parameters to ensure product stability, potency, and consistency. These parameters are critical during each stage of the process—freezing, primary drying (sublimation), and secondary drying (desorption).
A well-optimized freeze-drying cycle helps manufacturers avoid common issues such as incomplete drying, temperature overshoots, and system failure. In this article, we’ll break down the key freeze-drying process parameters, including temperature, voltage, timing, pressure settings, and automation features—and explain their role in maintaining a consistent and compliant process.
🔧 Key Freeze Drying Process Parameters
Understanding and controlling specific freeze dryer settings is crucial for optimizing cycle performance and ensuring regulatory compliance. Below are the main parameters:
🌡️ Temperature Setpoint
-
Maximum condenser temperature to release nitrogen: -45°C
This temperature ensures that the condenser effectively traps water vapor released during sublimation. Failure to maintain this setpoint can compromise drying efficiency. For more on equipment preparation, refer to our Freeze Dryer Operational Qualification Protocol.
⚡ Voltage Setpoint
-
Hydraulic shelf lowering setpoint: 32.0%
Proper voltage ensures that the shelves move uniformly during stoppering and unloading. Uneven movement can damage vials and disrupt product layout.
⏱️ Timing and Alarm Delay Settings
- Alarm delay for condenser temperature (-45°C)
Prevents false alarms during startup, allowing the condenser time to stabilize. - Alarm delay for temperature deviation during a 30-minute cycle
- Alarm delay for temperature deviation at the end of 30 minutes
These alarms protect product integrity by detecting overheating or freezing failures. - Alarm delay for condenser pressure deviation during purging: 10 minutes
Ensures that pressure regulation occurs smoothly during nitrogen purging. - Stoppering time: Measured in seconds
Defines how long pressure is applied to seal vials, affecting the final product’s sterility and closure integrity. - Pressure release time after stoppering: 5 seconds
Prevents sudden pressure drops, which may cause vial collapse or closure defects. - Solvent drain time: 12 minutes
Allows adequate time to remove residual solvents, preventing contamination or chamber buildup. Learn more about managing system residues in our article on Failure: Compressor Excess Temperature During Freezing.
⚙️ Automation Function
Automatic shelf lifting after stoppering: Enabled (Yes)
This function supports a smooth transition to unloading without manual intervention, which is especially valuable in automated aseptic environments.
For historical innovations in automation, check out the Pioneers of Freeze Drying and how they’ve revolutionized the field.
🔍 Why These Parameters Matter
Every parameter plays a role in reducing product variability, improving equipment efficiency, and ensuring regulatory compliance. For instance:
- Inadequate temperature control can lead to product collapse or high residual moisture. See our guide on lyophilized drug stability to understand how these factors impact long-term efficacy.
- Improper alarm delays may cause false error triggers or miss critical failures.
- Efficient shelf movement ensures uniform stoppering, crucial for sterile product closure.
🧪 Enhancing Monitoring and Safety
Technological innovations like the TIM APG100 Active Pirani Gauge enhance vacuum monitoring during sublimation. These tools provide precise feedback, allowing real-time process adjustments.
Also, functional testing—such as the Remoisturing Test—can verify the efficiency of the freeze-drying cycle across various product types.
Pressure set point in freeze drying process parameter
- Lower chamber pressure hysteresis 2.99%
- upper chamber pressure hysteresis 2.99%
- Pressure limit 1195 mbar
- Pressure limit valve 1095 mbar
- Pressure limit valve 1050 mbar
- Pressure limit valve 940 mbar
- Pressure limit valve 95 mbar
- Maximum pressure difference: 50mbar
- Vacuum blower start pressure 750mbar
Time set point in freeze drying process parameter
- vented signaly: 4 sec
- Pressure equalization: 55 sec
- Vacuum pump warm up time: 290 sec
- Vacuum pump cool down time: minutes
- Pressure controlled with the help og MKS and Pirani

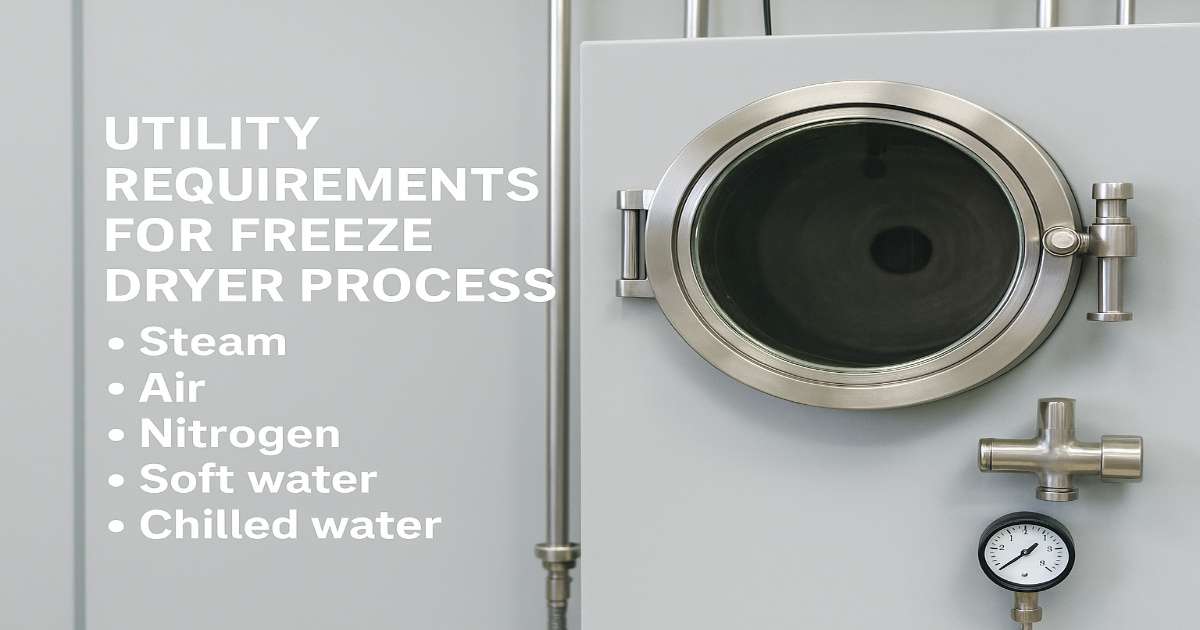

🔌 Utility Requirements for Freeze Dryer Process
Efficient freeze-drying (lyophilization) depends on the availability of essential utilities. Each utility plays a vital role in maintaining the correct environmental and operational conditions for a successful freeze-drying cycle. Below are the key utility requirements:
1. Steam
- Purpose: Used mainly for Sterilization-In-Place (SIP) and heating.
- Application: It sterilizes the internal components of the freeze dryer (chamber, shelves, piping) to ensure aseptic conditions before product loading.
- Note: Clean steam is preferred in pharmaceutical applications to meet sterility and regulatory standards.
2. Compressed Air
- Purpose: Supports pneumatic operations such as valve actuation and system automation.
- Application: Compressed air controls mechanical components (e.g., shelf movement, door locking systems) and is essential for automated freeze dryers.
- Note: Must be oil-free and dry to prevent contamination.
3. Nitrogen
- Purpose: Used for inert atmosphere purging and pressure balancing.
- Application: Prevents oxidation-sensitive products from exposure to air. Also used during stoppering and chamber pressure adjustment.
- Note: Must be high-purity and dry.
4. Soft Water
- Purpose: Used in the Clean-In-Place (CIP) process and for generating steam.
- Application: Soft water helps clean internal surfaces without causing scaling, which could damage equipment.
- Note: It should be treated to remove hardness and prevent buildup in heating/cooling systems.
5. Chilled Water
- Purpose: Critical for condenser cooling and shelf temperature regulation.
- Application: Removes heat during the condensation of water vapor. Also used to maintain low shelf temperatures during freezing and primary drying stages.
- Note: Must be supplied at a stable low temperature (commonly 5–7°C) for consistent process control.
Conclusion: Properly managed utilities—steam, air, nitrogen, soft water, and chilled water—are foundational to the safe, sterile, and efficient operation of a freeze dryer. Without these, critical steps like sterilization, cooling, and automation could fail, compromising product quality and process compliance
✅ Final Thoughts
Maintaining optimal freeze-drying process parameters is the foundation of quality pharmaceutical lyophilization. From condenser temperature and voltage settings to alarm delays and automation functions, each element contributes to successful drying cycles and robust product quality.
Manufacturers that implement real-time monitoring, validated settings, and automation enhancements can achieve greater consistency, reduce batch failures, and meet cGMP requirements with confidence. For further reading on optimizing lyophilization systems, explore:
- Freeze Dryer Operational Qualification Protocol
- Lyophilized Drug Stability
- Pioneers of Freeze Drying
- TIM APG100 Pirani Gauge
FAQs of Freeze Drying Process Parameter
❓1. What are the key parameters in the freeze-drying process?
The key parameters include condenser temperature (-45°C), hydraulic voltage setpoint (32.0%), alarm delays, stoppering time, pressure release time, and automation functions like automatic shelf lifting. These settings ensure optimal product drying, sterility, and process consistency.
❓2. Why is the condenser temperature setpoint important in freeze-drying?
Maintaining a condenser temperature of -45°C is critical to effectively trap water vapor during sublimation. Deviations from this setpoint can lead to incomplete drying and compromised product quality.
❓3. How do alarm delay settings improve freeze-drying safety?
Alarm delays—like those for temperature deviation and pressure during purging—help stabilize the system and prevent false triggers. They ensure process parameters stay within validated limits and help detect critical failures in real-time.
❓4. What is the role of voltage in the freeze-drying process?
A 32.0% voltage setpoint ensures uniform shelf lowering during stoppering. This uniformity prevents vial breakage and product shifting and maintains closure integrity during sealing.
❓5. How does automation enhance freeze-drying performance?
Automation features such as automatic shelf lifting after stoppering reduce human intervention and ensure smooth, aseptic transitions to unloading. This is especially valuable in GMP-compliant pharmaceutical environments.
❓6. What tools can help monitor freeze-drying parameters more accurately?
Advanced instruments like the TIM APG100 Active Pirani Gauge allow for real-time vacuum monitoring, enhancing cycle control and process validation. Additionally, tools like the remoistening test help verify freeze-drying efficiency across product types.
