Applications of Freeze-Drying in Biopharmaceuticals, or lyophilization, plays a vital role in the biopharmaceutical industry, ensuring the stability, potency, and shelf-life of delicate biological products. The process involves freezing the product, reducing the surrounding pressure, and removing water by sublimation. This technique is particularly suitable for heat-sensitive materials, such as proteins, vaccines, monoclonal antibodies, and other injectables.
Summary: Freeze-drying is essential for preserving biological drugs and ensuring they maintain stability and efficacy over extended periods.
📌 Key Takeaways
- Freeze-drying enhances the stability, solubility, and shelf life of heat-sensitive biologic drugs.
- It is essential for vaccines, monoclonal antibodies, and gene therapies, enabling global distribution without reliance on cold storage.
- Cycle development, equipment validation, and energy-efficient practices are critical for consistent product quality.
- Addressing common challenges like product collapse and dry layer resistance is vital for process optimization.
- Regulatory compliance and documentation are the backbone of a successful freeze-drying operation in biopharmaceuticals.
1. Stabilization of Biologics
Freeze-drying provides an ideal solution for biologics that are unstable in aqueous solutions. Proteins and peptides are often sensitive to temperature, pH, and enzymatic degradation, which makes lyophilization essential for maintaining their structure and function.
Summary: Lyophilization protects biologics from degradation, enhancing their shelf life and maintaining therapeutic efficacy.
Related Reading: Lyophilized Drug Stability
2. Vaccine Preservation and Transport
Vaccines often require cold-chain logistics. Lyophilized vaccines can be stored at ambient temperatures, significantly reducing transportation costs and enabling better access in remote regions.
Summary: Freeze-dried vaccines improve global accessibility by reducing reliance on refrigeration.
3. Enhancing Drug Solubility and Bioavailability
Many active pharmaceutical ingredients (APIs) suffer from poor solubility. Freeze-drying can enhance solubility by producing amorphous solids, which dissolve faster and improve drug absorption.
Summary: Lyophilization increases the solubility of poorly soluble drugs, boosting their bioavailability.
4. Combination Drug Formulations
Biopharmaceuticals often require combining multiple agents, like vaccines with adjuvants or therapeutic antibodies with stabilizers. Freeze-drying allows for the production of stable, multi-component formulations.
Summary: The process enables stable co-formulation of multiple therapeutic agents.
5. Monoclonal Antibodies (mAbs)
Monoclonal antibodies are sensitive to physical and chemical degradation. Freeze-drying maintains their structure and activity during long-term storage.
Summary: Lyophilization ensures long-term stability of monoclonal antibody-based therapies.
Explore Further: Cryoprotectants in Freeze-Drying
6. Intravenous and Injectable Drugs
Lyophilized injectables offer improved stability, better control over dosing, and reduced microbial contamination risks. The reconstitution process is straightforward, providing flexibility at the point of care.
Summary: Freeze-drying improves the safety and stability of injectable drug products.
Detailed Guide: How to Reconstitute Lyophilized Drug Products
7. Lyophilized Diagnostics and Reagents
Enzymes, antibodies, and reagents used in diagnostic kits benefit from lyophilization. These components retain activity and can be stored for extended periods without refrigeration.
Summary: Freeze-drying diagnostic reagents increases shelf life and ease of transport.
8. Cell and Gene Therapy Products
Advanced therapies, including cell-based and gene therapies, are highly sensitive to environmental conditions. Freeze-drying supports the preservation of vectors and delivery components.
Summary: Lyophilization supports the long-term storage of sensitive gene and cell therapy components.
9. Optimization Through Cycle Development
A key part of successful freeze-drying is cycle development, including freezing rate, primary drying, and secondary drying. Optimizing these stages improves efficiency and ensures uniform product quality.
Summary: Well-designed freeze-drying cycles enhance product quality and process efficiency.
In-Depth Resource: Freeze Drying Process Parameters – An Essential Guide
See Also: Dry Layer Resistance During Primary Drying
10. Regulatory and CGMP Compliance
Compliance with CGMP and regulatory expectations is critical. Documentation, equipment qualification, and validation protocols are key components of regulatory approval.
Summary: Adhering to CGMP and regulatory guidelines ensures product quality and global market access.
Recommended Reading: Lyophilizer Qualification Guidelines
11. Technology Advancements in Freeze-Drying for Biopharma
Recent technological advancements have transformed traditional lyophilization processes. Innovations such as controlled nucleation, real-time monitoring, and automation now enable better consistency, shorter drying times, and improved product quality.
Controlled nucleation techniques, for example, help initiate ice formation at predictable points, which leads to uniform ice crystals and consistent drying behavior. These methods reduce batch variability and improve yield.
The integration of PAT (Process Analytical Technology) tools has further enhanced freeze-drying by allowing for real-time monitoring of temperature, pressure, and product resistance. These sensors help detect abnormalities early, reducing the risk of product failure.
Automated systems with AI algorithms can now adjust parameters in real time, adapting to subtle changes and optimizing energy consumption. Robotics and remote systems also help minimize human error and improve operational efficiency.
Summary: Technological improvements in controlled nucleation, PAT tools, and automation lead to more consistent and efficient freeze-drying in biopharmaceuticals.
Further Reading: Energy Efficiency in Lyophilization – A Complete Guide
Related Topic: Freeze Dryer Operational Qualification Protocol

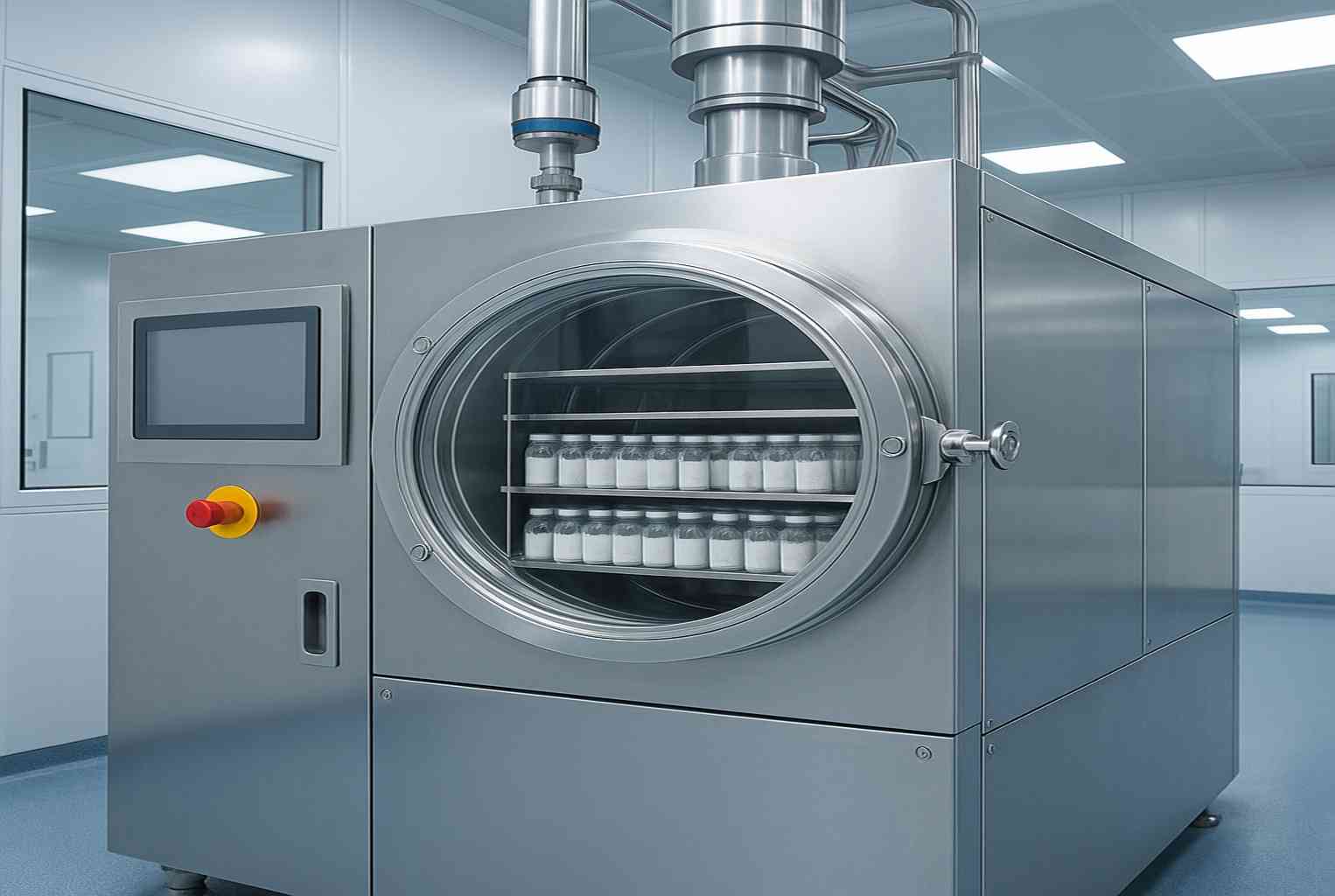

12. Equipment Types and Components in Biopharmaceutical Freeze-Drying
The effectiveness of freeze-drying in biopharmaceuticals heavily depends on the type and configuration of equipment used. Each component within a freeze-drying unit plays a unique role in ensuring product consistency, sterility, and process efficiency.
a. Freeze-Dryer Chamber
This is the main body of the unit where products are placed during the cycle. It’s designed to maintain vacuum and temperature controls with high precision.
b. Shelving System
Shelves are used for heat transfer—either cooling or heating the vials. Uniform shelf temperature ensures consistent drying across all product containers.
c. Vacuum System
Vacuum pumps reduce chamber pressure to enable sublimation. A reliable vacuum system is critical for primary drying performance and product quality.
Reference: Vacuum Chamber Lyophilization
d. Condenser
This component traps and freezes out the vaporized ice. A well-functioning condenser prevents backflow and protects product integrity.
Read More: Freeze Dryer Condenser Capacity Test
e. Refrigeration and Heating System
These systems are responsible for freezing the product and later applying heat to drive sublimation. Failures in these systems can cause drying inconsistencies.
Helpful Resource: Freeze Dryer Compressor Motor Jacket Cleaning
f. Control Panel and Monitoring Interface
Modern freeze-dryers feature touch-screen panels and SCADA systems that allow operators to monitor cycle progress, adjust parameters, and record batch data.
g. CIP/SIP Integration
Clean-In-Place (CIP) and Steam-In-Place (SIP) functions maintain sterile conditions without dismantling the equipment.
See Also: Clean in Place in Freeze Drying
Summary: Properly selected and maintained equipment components are critical for consistent freeze-drying performance in biopharmaceutical applications.
13. Energy Efficiency in Biopharmaceutical Lyophilization Processes
Energy efficiency is a growing concern in modern freeze-drying facilities. Reducing power consumption not only lowers operational costs but also aligns with sustainability goals.
Efficient lyophilization begins with optimized cycle design—especially shortening the duration of primary drying, which consumes the most energy. Reducing chamber leakage, maintaining compressor efficiency, and using advanced insulation are crucial measures.
Utilizing real-time data allows operators to identify excess energy usage and make timely adjustments. Heat recycling systems and adaptive control technologies can further cut down energy demand.
Process Improvement Tip: Integrating energy audits into routine validation can help uncover inefficiencies and propose data-driven upgrades.
Energy Monitoring Tools: Sensors that track energy input, temperature, and pressure during each drying stage allow comprehensive energy profiling.
Summary: Optimizing freeze-drying cycles, enhancing equipment insulation, and implementing real-time monitoring significantly improve energy efficiency in biopharmaceutical production.
Explore More: Energy Efficiency in Lyophilization – A Complete Guide
14. Common Challenges in Freeze-Drying Biopharmaceuticals
Despite its benefits, freeze-drying in biopharma presents various technical and operational challenges that can impact product quality and process efficiency.
a. Product Collapse
Collapse occurs when the product structure fails during primary drying due to exceeding critical temperature thresholds. This leads to loss of cake integrity and poor reconstitution behavior.
b. Incomplete Drying
Residual moisture in vials due to improper secondary drying can compromise stability. It’s vital to ensure uniform drying and proper endpoint determination.
c. Equipment Failures
Pump malfunction, shelf temperature deviations, or condenser inefficiency can disrupt the drying cycle and increase batch rejection rates.
Helpful Reference: Freeze Dryer Troubleshooting Guide
d. Vial Fogging and Breakage
Glass vials may fog or break during cooling/heating transitions if the process parameters are not optimized. These defects pose serious risks to sterility and product safety.
Further Reading: Defects in Lyophilized Product – A Complete Easy Guide
e. Inconsistent Dry Layer Resistance
Variations in dry layer resistance across vials cause uneven drying. Controlling freezing rate and shelf temperature uniformity is crucial.
Learn More: Dry Layer Resistance During Primary Drying
Summary: Common issues in lyophilization—such as product collapse, equipment malfunctions, and inconsistent drying—can be mitigated with robust process design and monitoring.
15. Validation and Quality Assurance in Freeze-Dried Biopharmaceuticals
Validation is a cornerstone of lyophilization in the biopharmaceutical sector. It confirms that each step of the process delivers consistent, reproducible, and high-quality outcomes that meet regulatory requirements.
a. Installation Qualification (IQ)
Verifies that the freeze-dryer and its associated systems are installed correctly per design specifications.
b. Operational Qualification (OQ)
Demonstrates that the equipment operates within the defined parameters.
Explore: Freeze Dryer Operational Qualification Protocol
c. Performance Qualification (PQ)
Assures that the system consistently performs as intended under actual production conditions.
Reference: Freeze Dryer Performance Testing Methodology
d. Cycle Validation
Includes trial runs and documentation to establish that the drying process consistently yields high-quality, stable product.
Recommended Reading: Lyophilization Validation—Best Practices 2025
e. Documentation and Audit Trails
Validation also requires thorough documentation of protocols, deviations, corrective actions, and outcomes to meet regulatory standards.
Summary: Comprehensive validation ensures process reproducibility, compliance, and high product quality in freeze-dried biopharmaceuticals.
🔚 Conclusion
Freeze-drying has revolutionized the biopharmaceutical industry by providing a robust method to stabilize and preserve biologics. With continuous innovation in equipment design, automation, and energy management, lyophilization will remain a cornerstone of high-quality drug development and global accessibility. Pharmaceutical manufacturers must balance scientific precision, regulatory compliance, and operational efficiency to harness the full potential of this critical technology.
✅ FAQs – Applications of Freeze-Drying in Biopharmaceuticals
Q1. What is freeze-drying and why is it used in biopharmaceuticals?
Freeze-drying (lyophilization) is a dehydration process that preserves heat-sensitive biological products like vaccines, antibodies, and proteins by freezing and sublimating water under vacuum. It ensures product stability, longer shelf life, and easier transportation.
Q2. How does freeze-drying improve drug stability?
Freeze-drying removes moisture, preventing degradation caused by hydrolysis and microbial growth. This enhances the chemical and physical stability of biologic drugs.
Q3. What are the most common products lyophilized in biopharma?
Vaccines, monoclonal antibodies (mAbs), peptides, proteins, injectable drugs, diagnostics, and gene therapy vectors are commonly lyophilized.
Q4. Can freeze-dried drugs be stored at room temperature?
Yes, most lyophilized drugs exhibit long shelf lives at ambient conditions, reducing the need for cold chain logistics.
Q5. What are the major challenges in biopharmaceutical lyophilization?
Challenges include product collapse, incomplete drying, equipment malfunction, vial breakage, and variation in dry layer resistance.
Q6. What role does validation play in freeze-drying?
Validation ensures that every process step—from equipment setup to cycle execution—meets regulatory and quality standards through IQ, OQ, PQ, and documentation.
