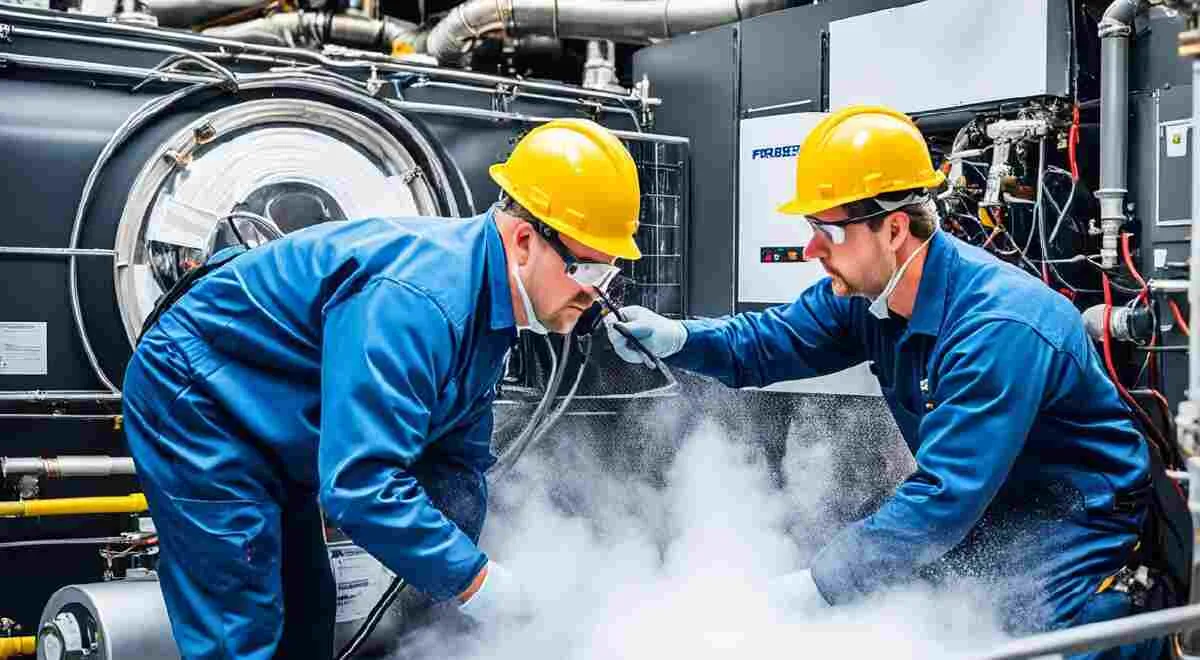

Cooling System Failure in Freeze Drying: What to Know

Cooling System Failure in Freeze Drying, did you know a single cooling system failure can ruin an entire batch of valuable products¹? In freeze-drying, keeping the temperature just right is key. If the cooling system fails, even for a short time, it can cause big problems. This article will cover why cooling systems fail, how to fix them, and how to keep your freeze-drying gear running well.

Key Takeaways

• Cooling system failure is a common issue in freeze drying that can lead to product loss and equipment damage.
• Understanding the causes, symptoms, and solutions for cooling system failure is critical for maintaining an efficient and reliable freeze-drying process.
• Preventive maintenance, including regular inspections, service, and monitoring, is key to avoiding cooling system failures.
• Proper maintenance of the refrigeration system, vacuum pumps, and other critical components can prolong the lifespan of your freeze-drying equipment.
• Investing in features like remote alerts and onboard diagnostics can help facilitate freeze-drying processes and maintenance.

Fialure Cooling System During Freeze Drying

Symptoms and Signs of Failure

When the cooling system in a freeze dryer fails, it can greatly affect the freeze-drying process and the quality of the final product. Common signs include temperature changes, uneven drying, and damage to the product. Freeze dryers have four types, each with different problems that can happen during use.

Refrigerant leaks or compressor issues can cause temperature problems, making it hard to freeze and dry properly. Compressor failures can sometimes be fixed quickly. If the condenser temperature is off, it might be due to a compressor problem, so it’s important to check the system and look for coolant leaks.

Troubleshooting Steps

To fix a cooling system failure in a freeze dryer, follow a step-by-step approach. Check the refrigeration parts, look for leaks, and make sure the compressor and other key parts work right. Having extra parts like vacuum pumps and cooling systems helps keep things running if there’s a problem.

It’s a good idea to keep track of any changes and use trend analysis to spot problems early. Refrigeration issues are a big part of freeze dryer problems, with issues like condenser failures and relay faults being common. Automatic freeze dryers can do the drying steps on their own. But only if they’re set to work automatically. Here are some troubleshooting Steps and Symptoms and Signs of Failure given below

Compressor excess pressure

This failure message appears when one of the excess pressure safety switches has been cut out. The corresponding compressor has been switched off.

After the failure has been eliminated, the compressor that was switched off is released. And can be restarted only after an additional waiting period has elapsed.

The cause of this failure could be:

The pressure in the liquefier is too high, i.e., the cooling water flow to the corresponding liquefier should be checked. this is auto-return; there is no delay

A refrigeration expert must be called to eliminate this failure.

This failure message appears when one of the excess pressure safety switches has been cut out. The corresponding compressor has been switched off.

After the failure has been eliminated, this failure must be acknowledged by pressing an unlocking button installed in the switch casing. This switch is located beside the compressor.

The compressor that was switched off is released and can be restarted only after an additional waiting period has elapsed.

The cause of this failure could be:

The pressure in the liquefier is too high, i.e., the cooling water flow to the corresponding liquefier should be checked. and alarm is no auto-return; there is no delay

Compressor oil pressure difference is not okay

This failure message appears when one of the oil pressure monitoring switches has cut out. The corresponding compressor was switched off.

After the bimetallic trigger in the switch has cooled down, this failure must be acknowledged by pressing an unlocking button installed in the switch casing. This switch is located beside the compressor.

The causes of this failure could be:

• Lack of oil. There is too little oil in the crankcase of the corresponding compressor.
• Foaming of the oil through the presence of refrigerant.
• This alarm  is no auto-return; there is no delay

Compressor excess temperature

This failure message appears when one of the motor protection systems (monitoring of the coil temperature of the drive motors by thermistors) has cut out. The corresponding compressor was switched off.

After the failure has been eliminated, i.e. after the motor coil has cooled off, the compressor that was switched off is restarted only after an additional waiting period has elapsed.

The causes of this failure could be:

• Short-circuit in the coil of the
• The compressor was switched on and off too often in rapid
• Lack of refrigerant. Check the injection valves
• This is auto-return; there is no delay

Failure Compressor

This failure message appears when the following has occurred with one of the motor protection switches installed in the power distribution cabinet for compressors:

• The motor protection switch was not switched
• The motor protection switch cut out and switched off its corresponding compressor.

The cause of failure b} could be:

• Short-circuit in the coil of the
• The compressor was switched on and off too often in rapid succession.
• This is no auto-return; there is delay

Failure of the overheating controller

This failure message appears when the following has occurred with one of the.

• Cooling controller unit failed
• This failure message appears when one of the cooling controllers (silicone oil cooling or condenser cooling) failed.
• Look in the manual of the controller to get more information
• This is no auto-return; there is delay

Conclusion

Keeping your freeze-drying equipment reliable is key to making consistent products. It also helps you work more efficiently and get a good return on your investment. Knowing why cooling systems fail, like refrigerant leaks or compressor issues, lets you fix problems early. This keeps your freeze-drying work smooth.

Having a strong maintenance plan is important. This includes checking your equipment often, replacing parts when needed, and watching how it works. Doing this lowers the chance of cooling system failures. It also keeps your freeze-drying gear working well for a long time.

A well-kept cooling system is vital for freeze-drying success. By tackling cooling system problems early and keeping up with maintenance, you make sure your products are top-notch. This also makes your freeze-drying process more efficient and profitable.

FAQ
